City gate

Simple and beautiful design

The sophisticated design can be installed anywhere, creating a sense of luxury and beauty.
The main body is available in two types: SUS stainless steel hairline finish and mirror finish.
The main body is treated with a glass coating to maintain its beauty forever.

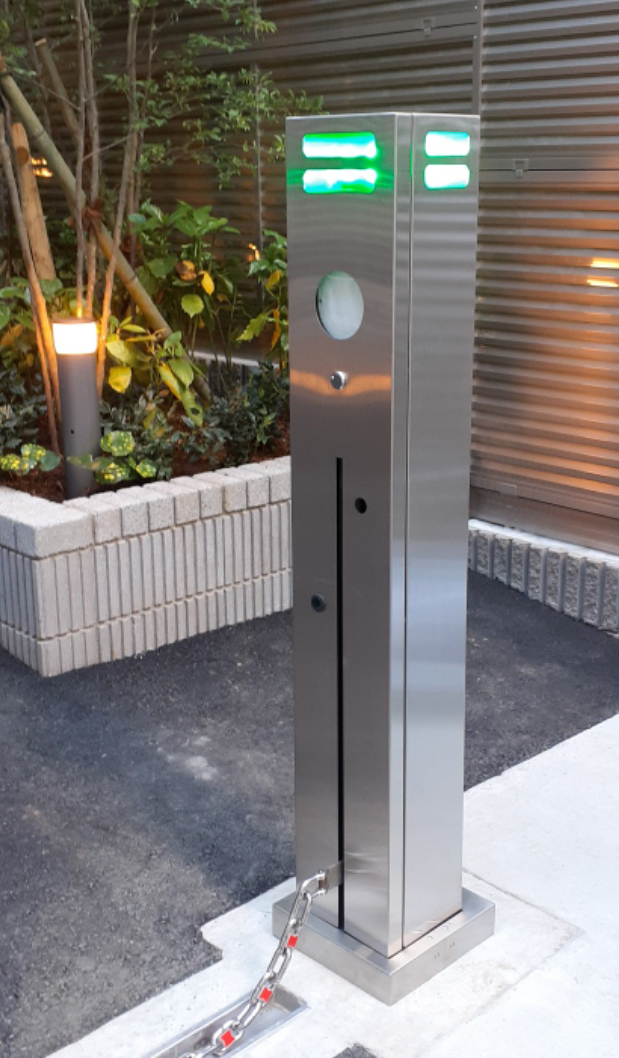

▼MIKImodel

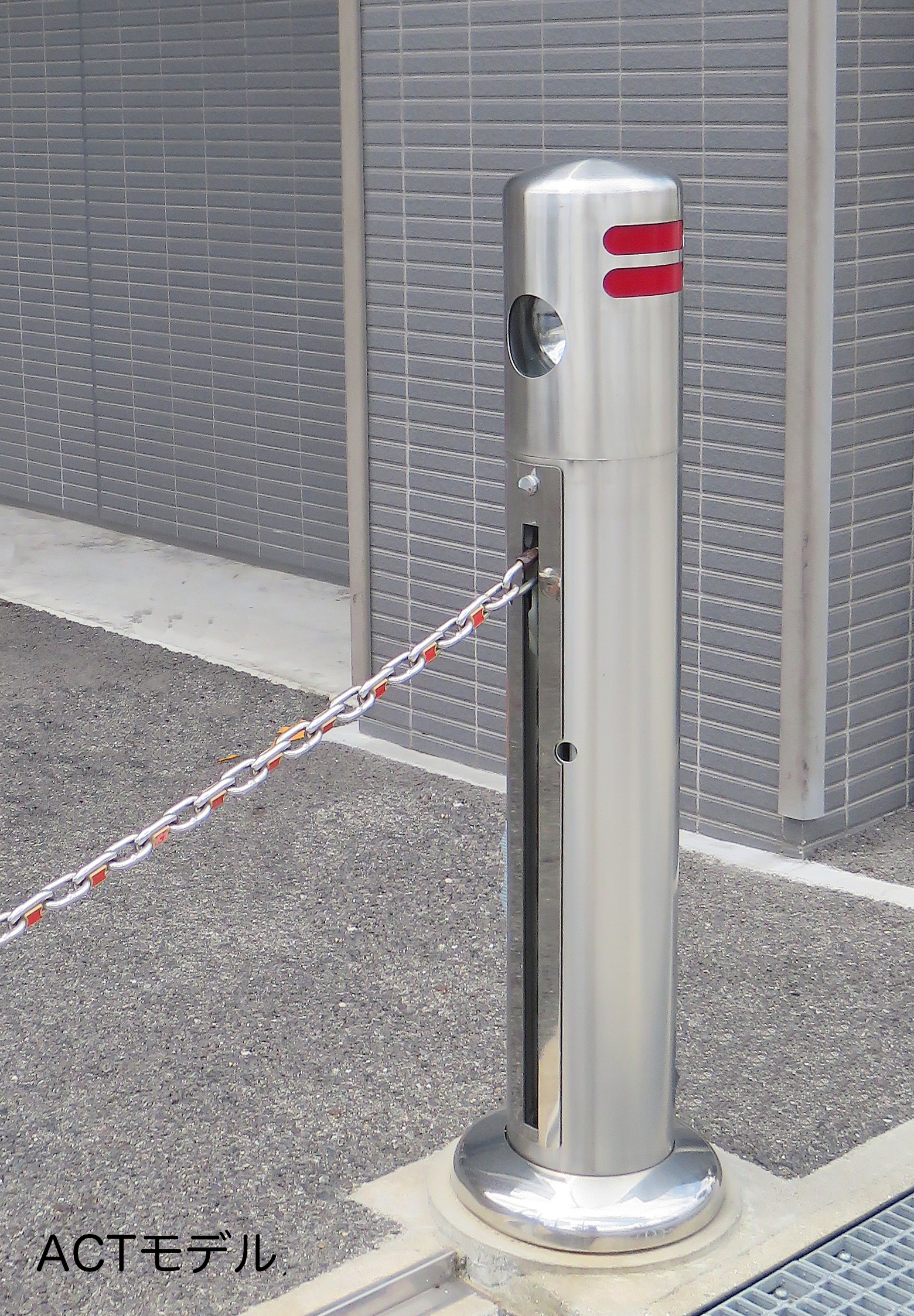

▼ACTmodel

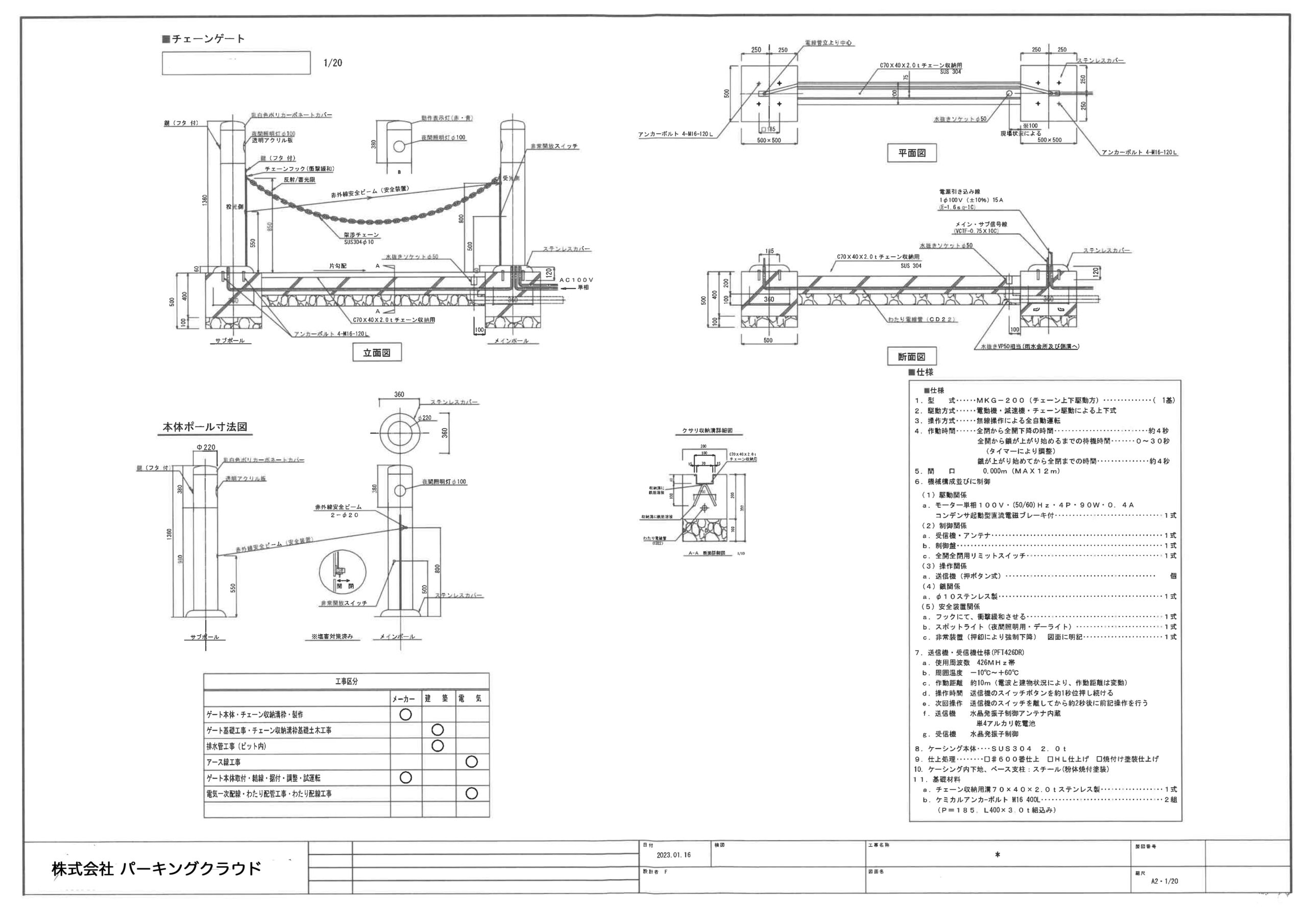

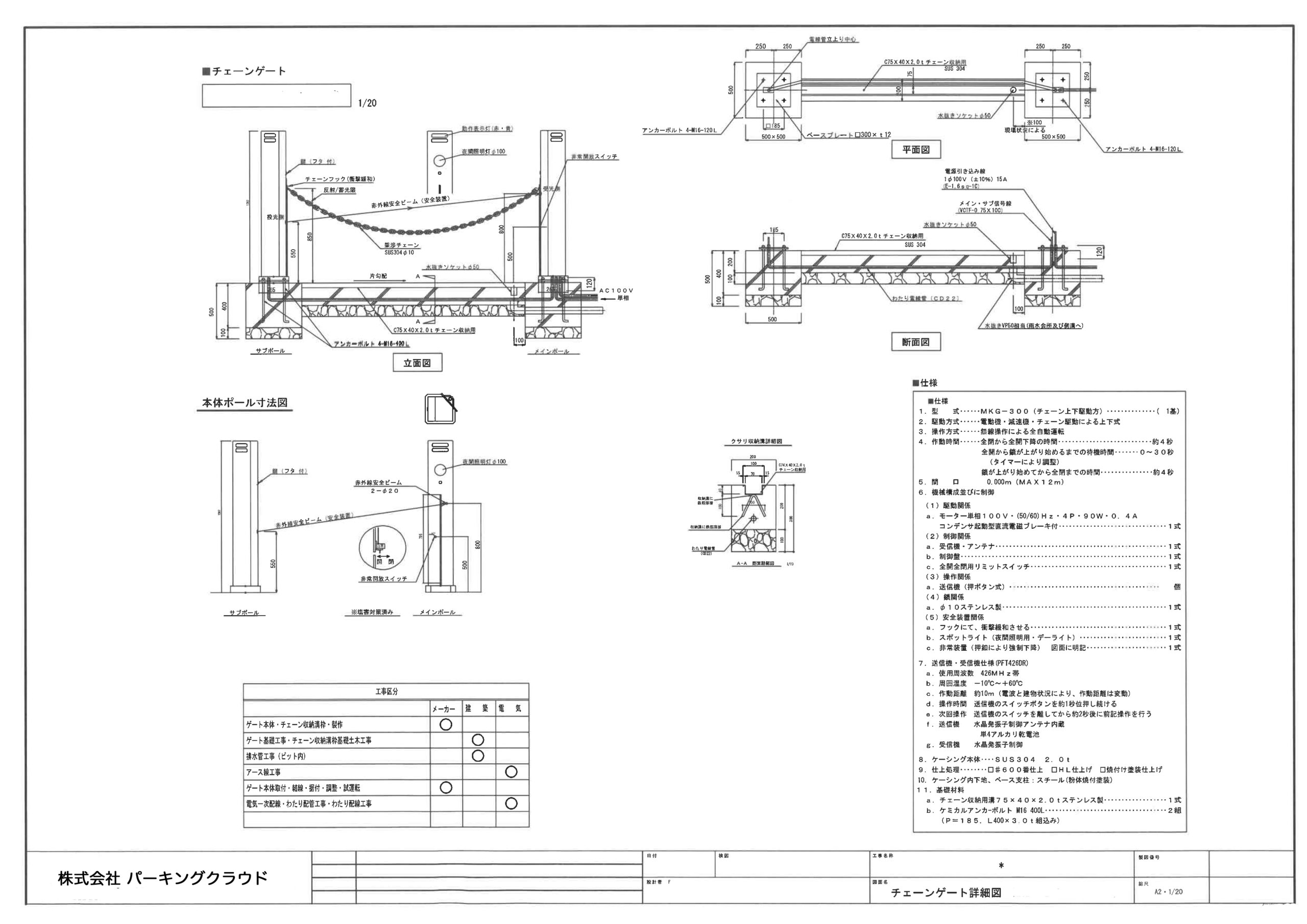

▼Construction Drawings

High safety and security

Highly visible two-color LED warning lights, LED night lighting that brightly illuminates the gate area, and an infrared safety sensor built into the main unit. When an obstacle is detected between the gates, the chain instantly stops descending.

With a maximum width of 10 meters and a heavy-duty 10-millimeter stainless steel chain, it makes a strong impression.

If excessive resistance is applied to the chain due to vehicle contact, the built-in safety pin will break, causing the chain to disengage and reduce vehicle damage.

In the event of a power outage, the system automatically stops and descends; when power is restored, it automatically resumes operation.

A secret power switch is built-in, allowing for emergency descent at any time.

The motor used is a quiet Sumitomo reversible motor equipped with a powerful electromagnetic brake.

　

Reliable remote control operation

Basic operation: Stop briefly in front of the chain gate, then operate the remote control toward the equipment.
Visually confirm the chain has lowered and verify safety before proceeding through promptly.
The remote control typically has a range of about 20 meters, depending on conditions. (5-level sensitivity adjustment available)
Operation over 100 meters is possible using intermediate receivers.

　

Chain Gate Operation Method

The parking lot can be connected to a variety of devices

Examples:
・Pattern 1: Entry and exit via remote control operation
・Pattern 2: Entry via remote control operation, free exit (using vehicle detection sensors)
・Pattern 3: Gate A is for vehicle entry only (using remote control), and Gate B is for vehicle exit only (using vehicle detection sensors).

Flow from contract to installation

New installation: Confirmation of installation location ~ Foundation work (half day) ~ Subsequent delivery and installation work (half day) ~ Delivery on the same day
Replacement installation: Confirmation of installation location ~ Foundation work (half day) ~ Installation work (half day) ~ Delivery on the same day

*External power supply 100V installation is also required.

Contact us

If you have any questions or concerns regarding our products, please contact us.
We will discuss your intended use and installation location to recommend the optimal implementation method.

Parking Cloud Co., Ltd.
TEL: 078-599-8812 (main number) Mon-Fri

Everything from design to manufacturing, control devices to control programs, and LED equipment used is developed in-house.
We can handle everything from various OEM manufacturing to new development.

*We also repair, replace, and maintain other companies' chain gates. (Consultation required)

　

Price

City Gate Model A (Round) Open Price Individual Sales Price: ¥650,000 (excluding tax)
City Gate Model B (Square) Open Price Individual Sales Price: ¥750,000 (excluding tax)

※New Installation Package Fee: ¥250,000 (excluding tax, Kinki region: Osaka, Kyoto, Wakayama, Nara, Shizuoka)
　Foundation work, stainless steel gutter, stainless steel chain set

※Complete replacement cost for old chain gate with new unit: ¥80,000 (excluding tax)
　Old equipment removal and disposal fees・Foundation reinforcement (requires replacement of stainless steel anchor bolts)
